KNOCKS
Made in Germany

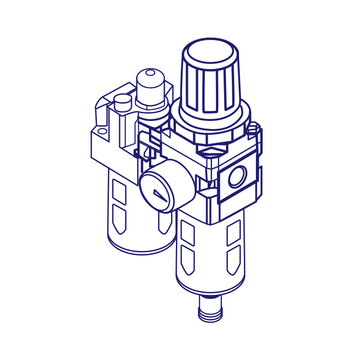

G 3/8, with auto drain
Technical Specifications
| Port size | G 3/8 |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,5-6 bar, 0,5-16 bar |
| Filter element | 5 μm standard |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 35 cm³ condensation volume |
| Drain model | Manual drain standard, optional semi drain |
| Fixing | Panel mounting, bracket |
