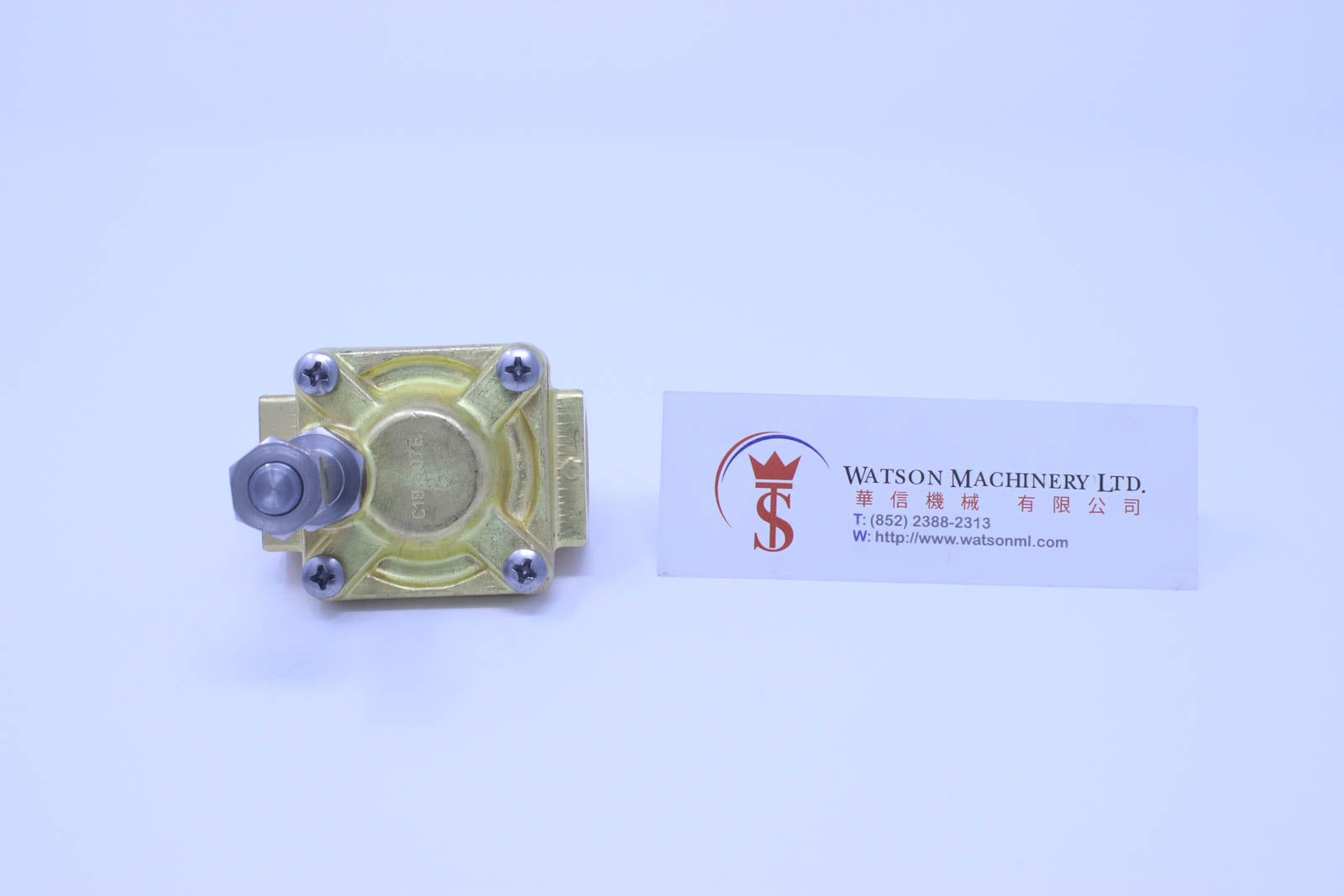

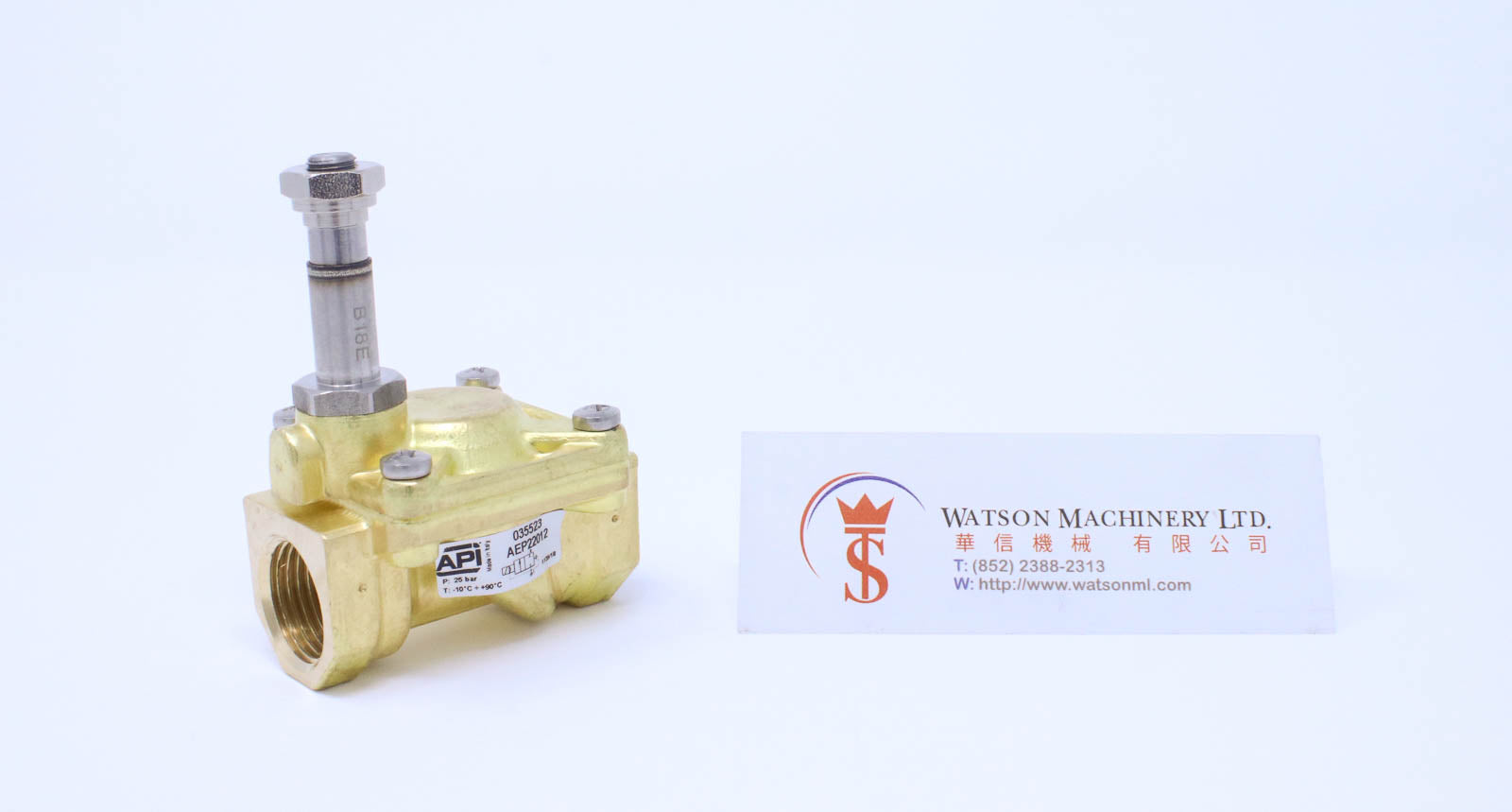

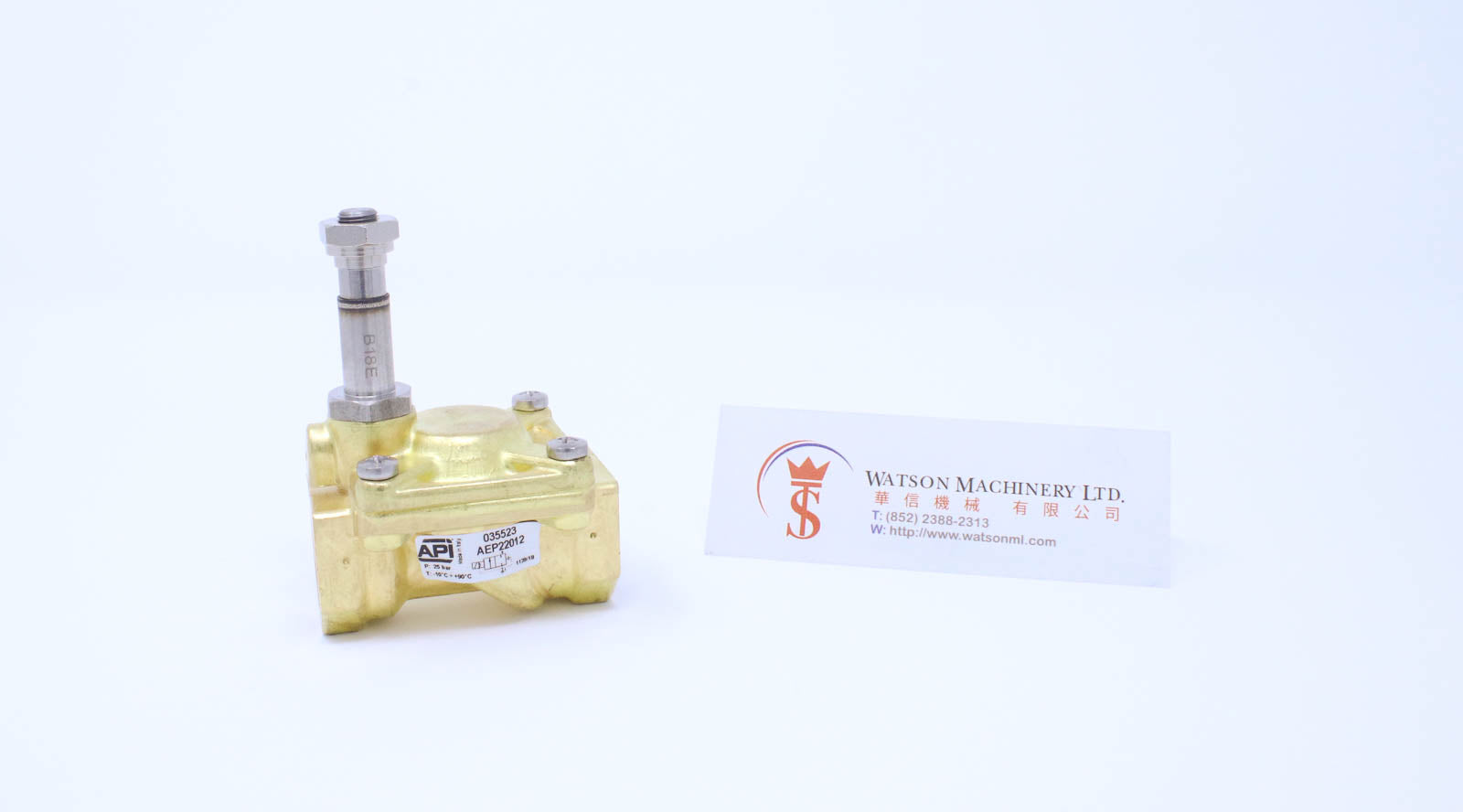

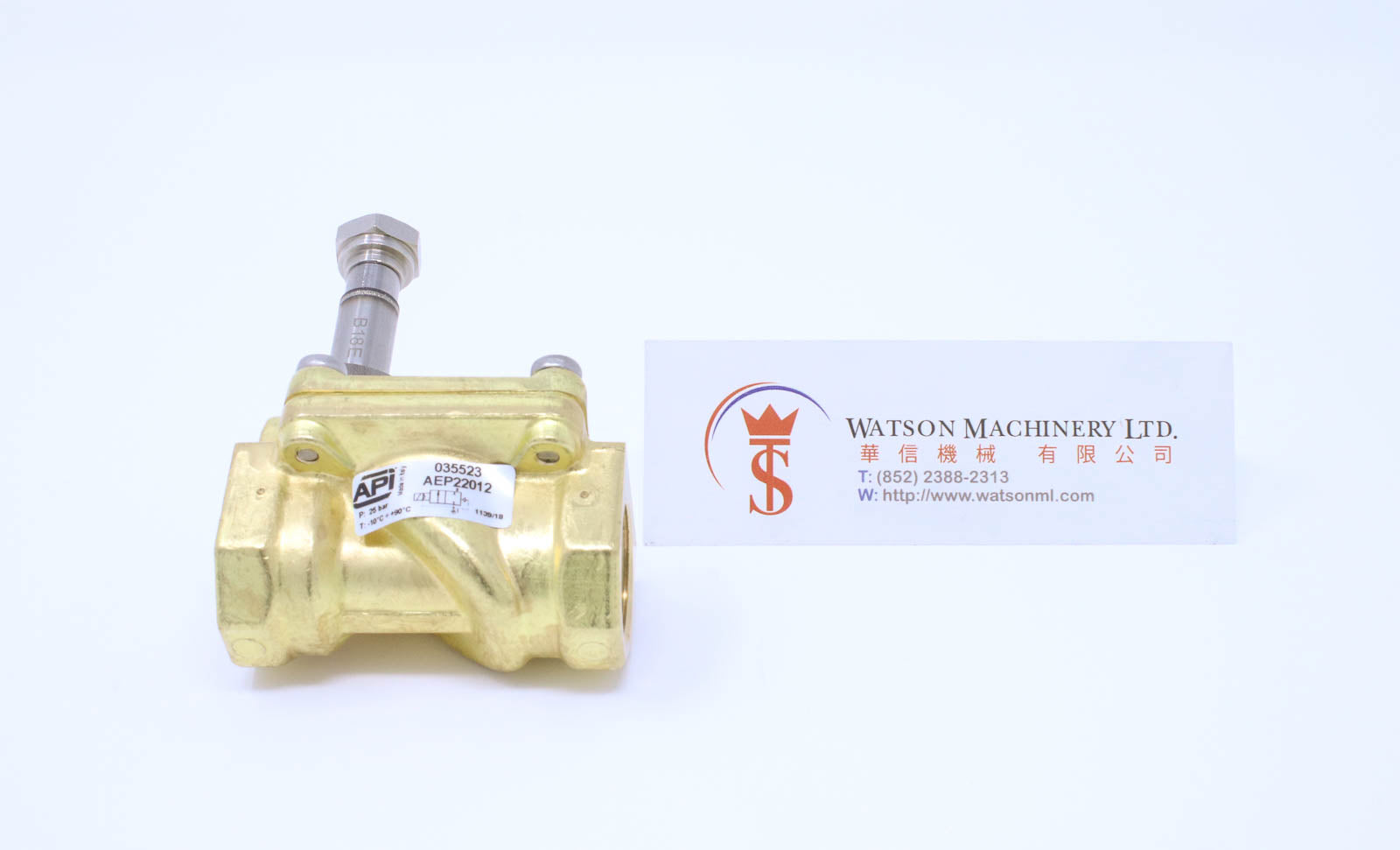

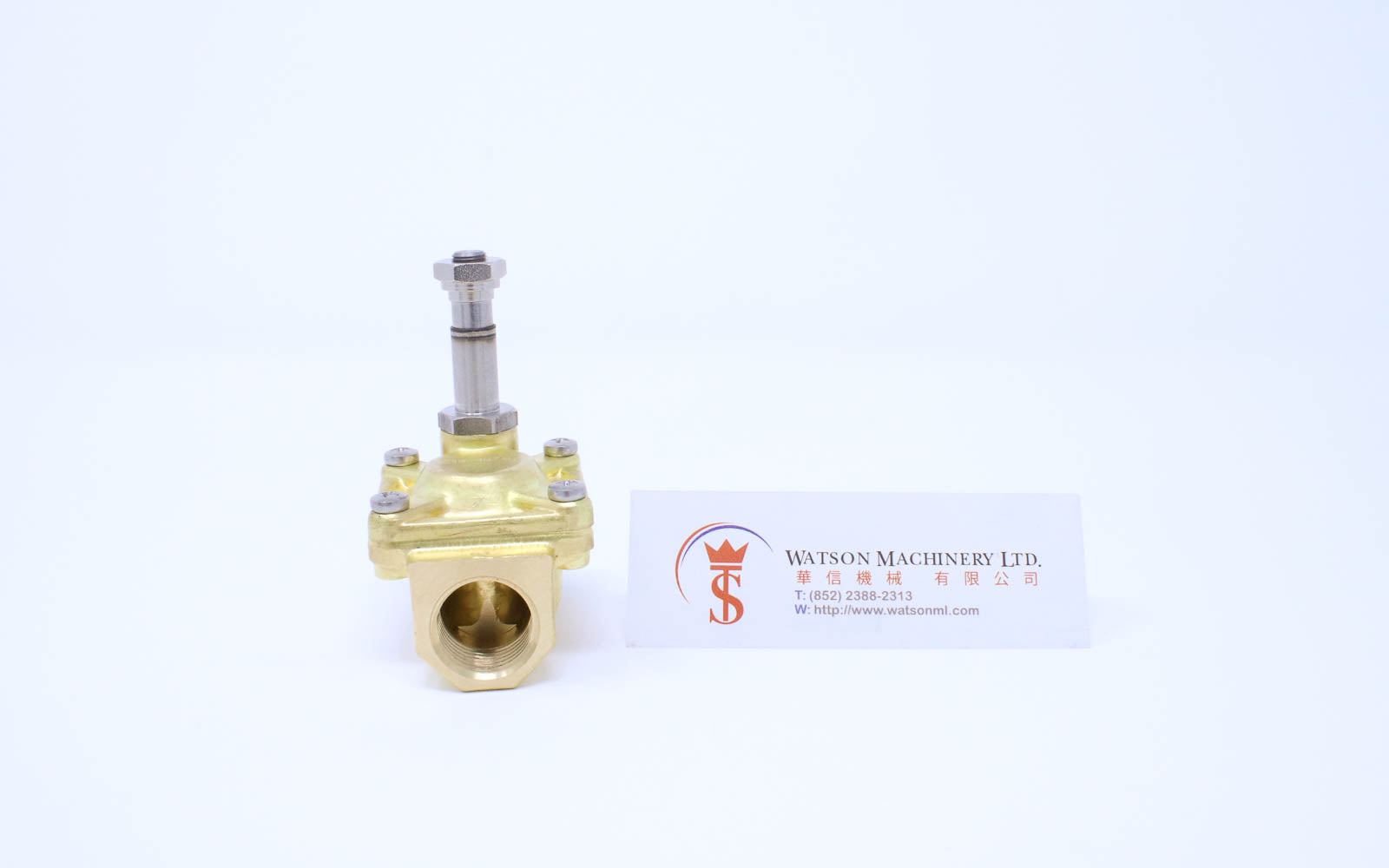

MPN 035523, 1/2" BSP, with EPDM seals (+140℃)

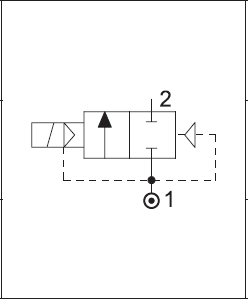

2/2, normally closed, Indirectly operated solenoid valve for water and steam.
Technical Specifications
| Fluid | Water and steam. Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 25 bar |
| Fluid maximum viscosity | 25 cSt (mm²/s) |
| Orifice | 12 mm |
| Flow | 2,2 m³/h |
| Mounting | Better with the coil high |
| Materials |
Body: Brass |
