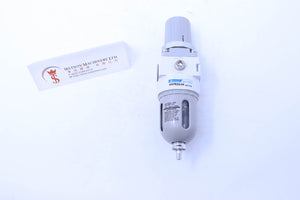

AIR UNIT (F.R UNIT)
MAFR200 series

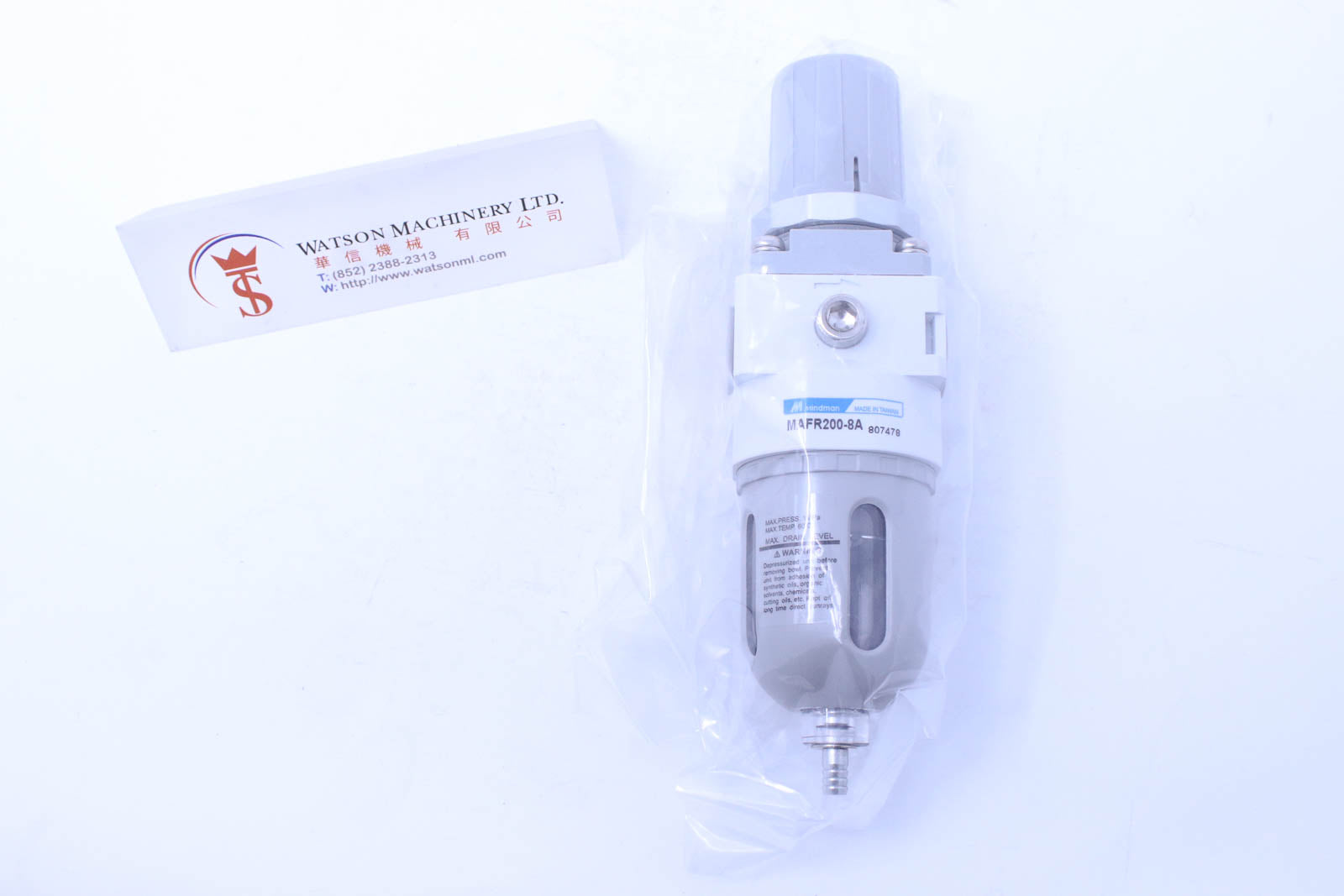

MAFR200-8A, 1/4
Technical Specifications
| Model | MAFR200 |
| Bore no. | 6A / 8A |
| Port size | 1/8 / 1/4 |
| Medium | Air |
| Operating pressure range | By order specifications |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 40μm Option: 5μm |
| Drain capacity | 9.5 m³ |
| Attachment | Pressure gauge (PG-40), L-type bracket |
