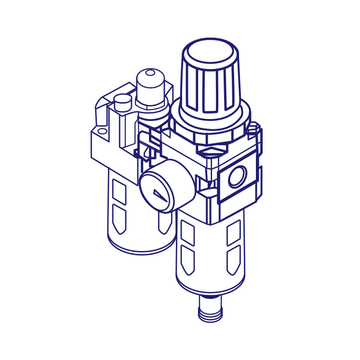

AIR UNIT (L. UNIT)
MAL200 series
MAL200-8A, 1/4
Technical Specifications
| Model | MAL200 |
| Bore no. | 6A / 8A |
| Port size | 1/8 / 1/4 |
| Medium | Air |
| Max. operating pressure | 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Lubricating oil capacity | 20 c.c |
| Min. Flow for oil drip | 35 l/min / 50 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
