TOGNELLA

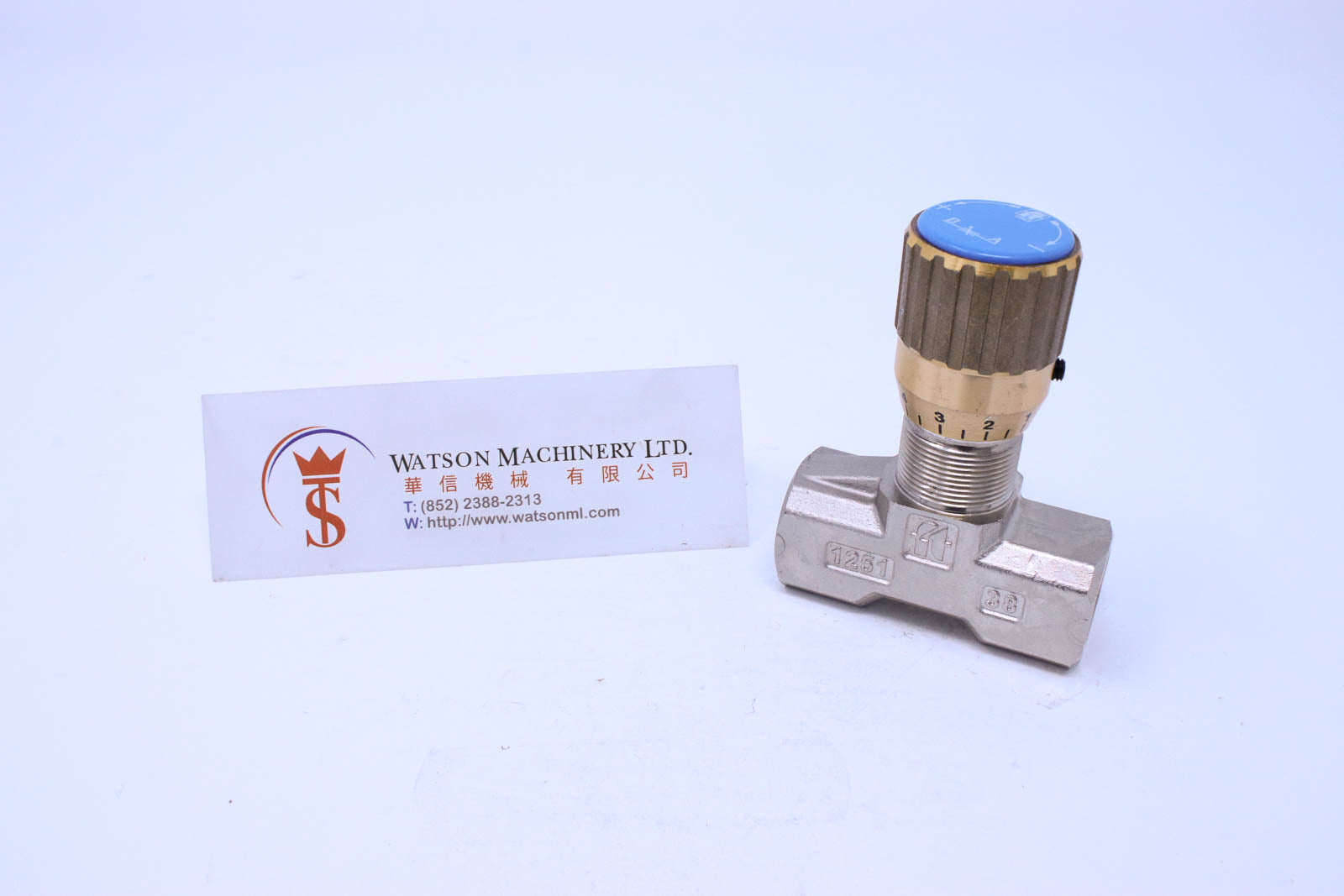

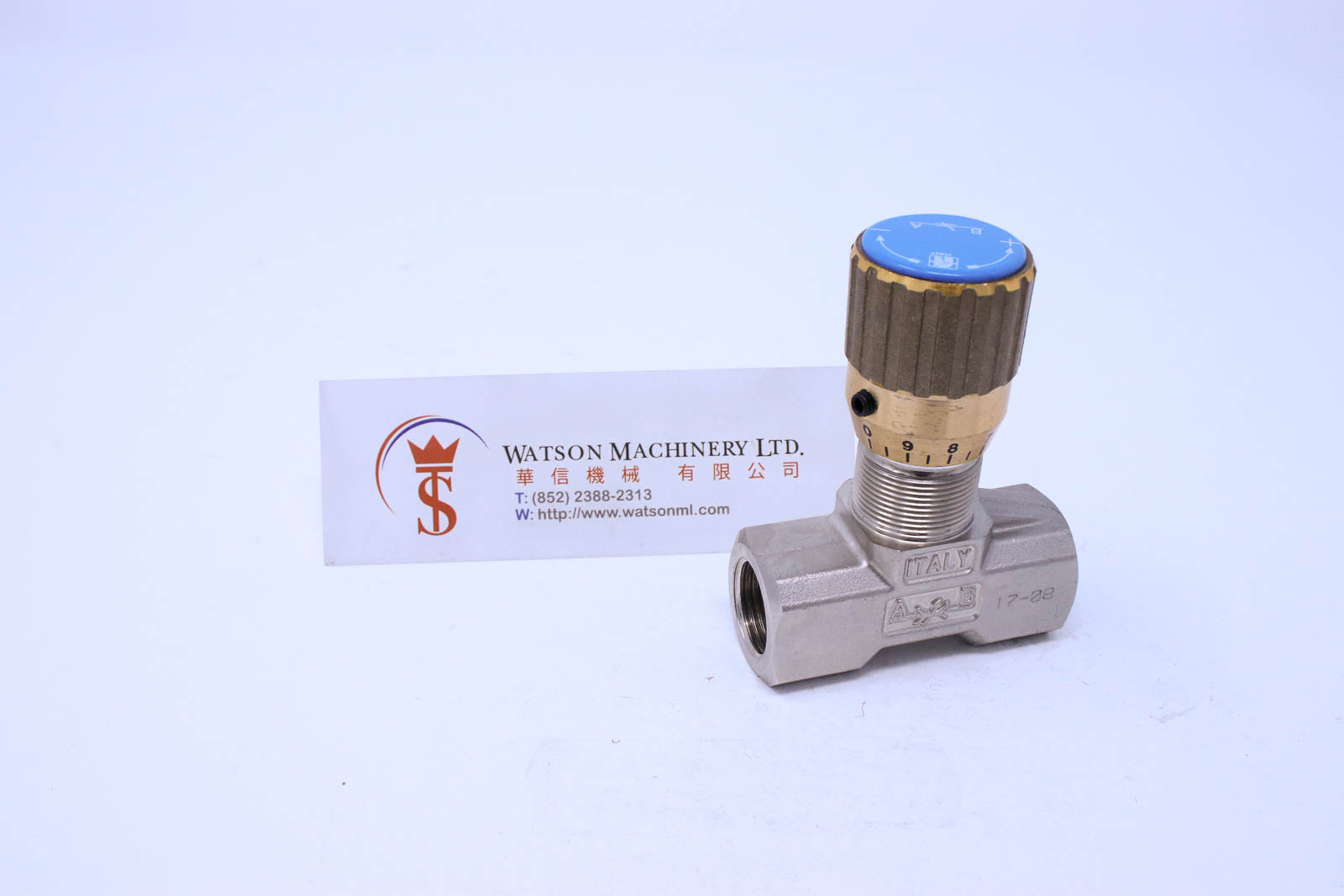

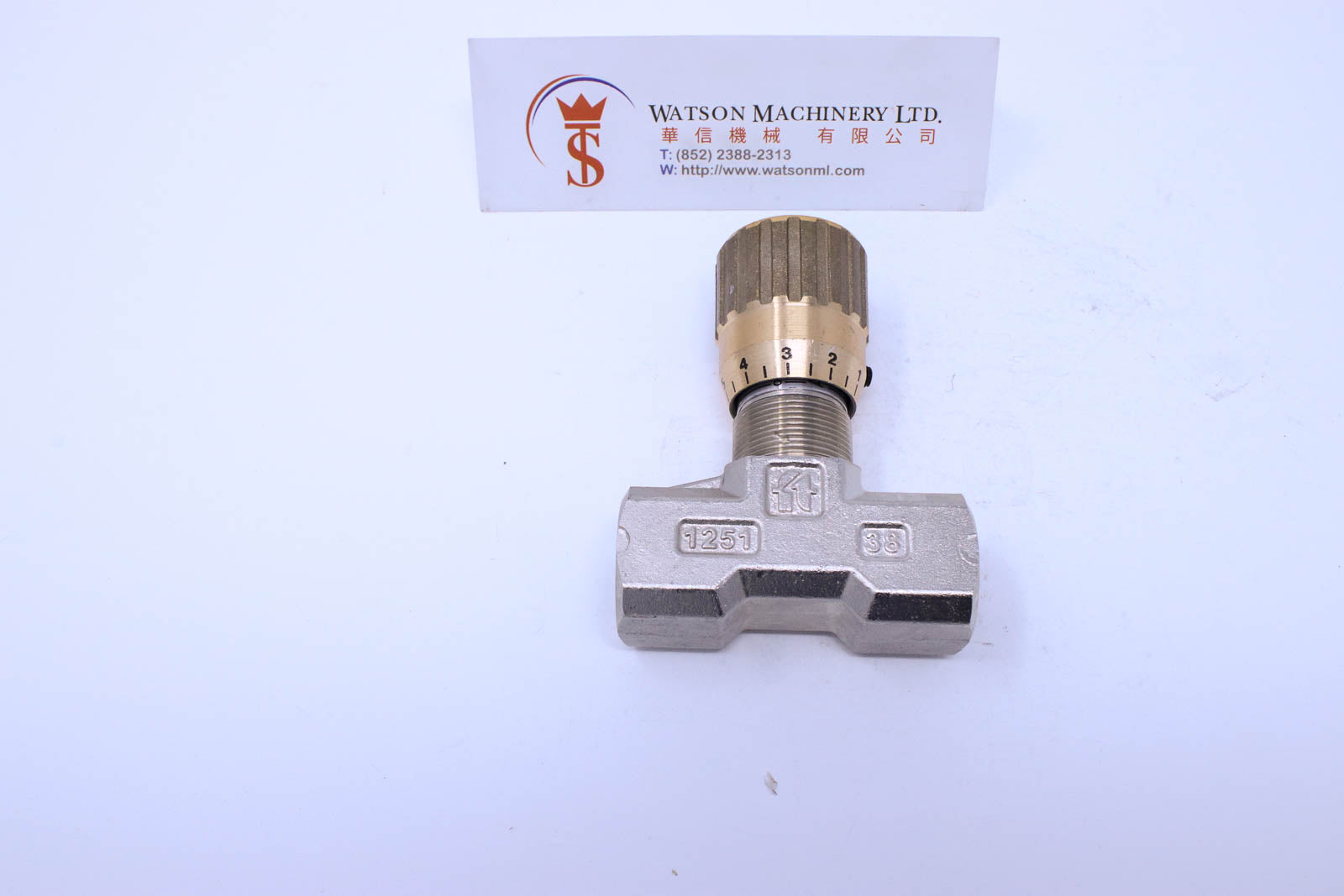

DOUBLE-ACTING CONTROL VALVES FEMALE-FEMALE IN LINE
Made in Italy
Technical Specifications
MATERIALS
DOUBLE-ACTING CONTROL VALVES FEMALE-FEMALE IN LINE
Made in Italy
Technical Specifications
| TYPE:38 | G 3/8 |
| FLOW SQ MM² | 19,64 |
| MAX WORKING PRESSURE BAR | 210 bar |
| WORKING TEMPERATURE ℃ | -20℃ to 100℃ |
| FILTRATION GRADE μM | 25 μm |
MATERIALS
| BODY | OT 58 - UNI 5705-NICKEL PLATED |
| NEEDLE | X 10 CR NI S 1809- UNI 6900 |
| OR | NITRILE |
| ANTIEXTRUSION RING | PTFE |
| KNOB | GD AL SI 12 - UNI 5706 |
